The Weichai Diesel Generator Set is a reliable and efficient power solution designed to meet the energy needs of various applications. With its compact design and high-quality components, this generator set offers exceptional performance and durability. Let's delve deeper into the key features of this product:
Dimension: The Weichai Diesel Generator Set comes in various dimensions to suit different space requirements. The 3200*1150*2100 (mm) dimensions ensure that the generator set can be easily accommodated in different settings, making it a versatile power solution for a wide range of applications.
Certificate: This generator set is certified with ISO and CE, ensuring that it meets the highest quality and safety standards. The certifications guarantee that the product has been manufactured using top-notch processes and materials, giving you peace of mind regarding its reliability and performance.
Rated Speed: The Weichai Diesel Generator Set operates at a rated speed of 1500/1800rpm, providing efficient and stable power output. The dual-speed options allow you to optimize the performance based on your specific energy requirements, ensuring that you get the most out of the generator set while minimizing fuel consumption.
Cooling System: Equipped with a water-cooled system, this generator set effectively dissipates heat to maintain optimal operating temperatures. The cooling system enhances the overall efficiency and longevity of the generator set, ensuring consistent performance even under heavy load conditions.
Control System: The Weichai Diesel Generator Set features advanced control systems from Smartgen, Deepsea, and other reputable brands. These control systems offer intelligent monitoring and management capabilities, allowing you to operate the generator set with ease and precision. The sophisticated controls enhance the overall efficiency and reliability of the generator set, making it an ideal choice for demanding applications.
With its efficient and stable performance, the Weichai Diesel Generator Set is designed to deliver reliable power output while keeping operational costs low. The combination of high-quality components, advanced technologies, and thoughtful design ensures that this generator set meets the demands of modern energy needs without compromising on performance or durability.
Whether you need a backup power solution for your business, a reliable power source for remote locations, or a primary power supply for critical operations, the Weichai Diesel Generator Set offers a cost-effective and dependable solution. Its efficient operation, sturdy construction, and user-friendly controls make it a valuable asset for various industries and applications.
Experience the benefits of efficient and stable power generation with the Weichai Diesel Generator Set. Lower your costs, increase your productivity, and enhance your peace of mind with this reliable and high-performance power solution.
| Generator set | Model No. | SW375E5 |
| Standby power | 412.5KVA/330KW | |
| Rated power | 375KVA/300KW | |
| Output voltage | 240/415 V | |
| Frequency | 50 Hz | |
| Noise level(7m) | 75dB (silent type) | |
| Power factor | COSΦ=0.8(lagging) | |
| Phase/wires | 3 phase 4 wires | |
| Start mode | Electric | |
| Fuel consumption | 85 L/h (100% load) 64 L/h (100% load) | |
| Max currency(amps) | 318 (400V) /306 (415V) | |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. | |
| Engine | Brand | Weichai |
| Model | WP13D385E200 | |
| Rated speed (r/min.) | 1500 | |
| Cylinders layout | 6 in line | |
| Fuel | 0# light diesel | |
| Inter-Cooling | Turbo charged/After-cooling | |
| Compression Ratio | 16:1 | |
| Engine Power (prime/standby) | 350KW/385KW | |
| Aspiration | Direct injection | |
| Governor/Class | Electronic | |
| Bore and stroke | 127×165 mm | |
| Start mode | DC24V electric start | |
| Displacement | 12.54L | |
| Alternator | Brand | Leroy Somer |
| Model | TAL-A473-A | |
| Protection | IP23 | |
| Insulation class | H | |
| Frequency fluctuation | ≤±0.5 % | |
| Voltage distortion | ＜4% | |
| Output (Cont./standby) | 410KVA/450KVA | |
| Rated speed (r/min.) | 1500 | |
| Rated voltage | 380-415V adjustable | |
| Frequency regulation | ≤±0.5 %(stable) | |
| Voltage control | AVR |
| Technical parameters of Control Panel: | ||||
| Brand | Smartgen | Model | HGM 6110N |  |
| Function: | ||||
| • Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection | ||||
| Note:Indicate this function depend on the set points of the controller in field. | ||||
| Optional accessories | |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | optional | √ |
| Single-bearing generator again drops | √ | √ |
| Intelligent LED display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Radiator | √ | √ |
| High-efficient muffler | √ | √ |
| Circuit breaker | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |

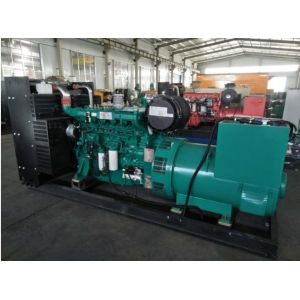

| Open type: 3200*1150*2100mm (with fuel tank) 2,800 kg
|

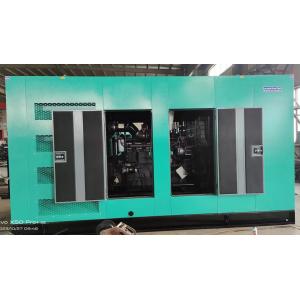

| Silent type: 3800*1600*2100 mm 3,600 kg
|
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Warranty: Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.
We offer client warranty of complete genset 12 months or 2,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)Weichai engine and Leroy somer alternator enjoy worldwise after service offered by Weichai and Leroy somer global after service network.Weichai engine enjoy 2 year or 2,000 running hours warranty.Quick after service and parts are available from Stone Power or distributors in your location.
Product Packaging:
The Weichai Diesel Generator Set is carefully packaged to ensure safe delivery. Each component is secured in place to prevent damage during transit. The packaging is designed to protect the generator set from external elements and ensure it arrives in perfect condition.
Shipping:
Our shipping process is efficient and reliable. We work with trusted carriers to deliver the Weichai Diesel Generator Set to your location in a timely manner. We provide tracking information so you can monitor the status of your shipment. Rest assured, your generator set will be delivered safely and securely.
